Lecture 02: the physical layer
Goals
- explain the role of the physical layer in the abstraction hierarchy
- explain the purpose of the components of the physical layer: transmitter, receiver, medium
- explain the role of the various pieces of computer hardware at the physical layer: host, PHY, controller, interface
- define latency and bandwidth
- define simplex, half-duplex, full-duplex, and dual-simplex
ultimately, we want to permit processes to send data to each other
processes are the unit of computation
and the entire course can kind of be summed up as considering all the complications that arise from this desire, given that the two communicating processes could be running on computers that are continents apart, and that there may be bazillions of processes running on bazillions of computers that might want to talk to each other
this has implications on protocols (the rules for carrying out tasks involving multiple entities) and software (that implements the protocols) and hardware (that runs the software)
futhermore, there are different kinds of communication we might want to support
sometimes, Process A might want to send a message to Process B and there is no response needed or expected: it’s a one-and-done operation
think like sending a text message saying "I’m on my way"
other times, Process A might want a response from Process B, or it might want to have a longer conversation where both processes send back and forth
think like a phone call
the latter would be an instance of a "connection", which (in this context, at least) is a semi-imaginary relationship between these two processes that permit the sending of data, usually both directions
I say semi-imaginary because there won’t be any tangible THING we can point at or touch that represents the connection: there won’t be a copper wire between the two processes, to which the processes are physically connected
instead, while there will definitely be physical wires involved, many of which are copper, all the infrastructure we’ll discuss will use these physical connections to give the processes an illusion of connection
another way to say this is that the processes will have a logical connection (as opposed to physical)
the former case, in which a message is sent and no response is needed or expected, would be called "connection-less"
it might surprise you to learn that there are actually meaningful uses for this kind of sending and receiving
so we will look at both connection-less and connection-based communication in this course
and indeed many of the lower-level protocols will be entirely connection-less
and the purpose of the higher-level protocols (TCP in particular) will be to take the connection-less building blocks and create a connection-oriented abstraction on top of them
ultimately, however, for data to be sent between processes running on different machines, that data must escape into the real, physical world
which involves hardware
so while almost all the rest of the course will deal with software, I think it’s worth talking about the hardware at least a bit
we will also, not at all coincidentally, talk about Layer I, The Physical Layer: what are its responsibilities, dependencies, etc
we’re going to start very far away from computers, though we’ll get there by the end of the day
tin-can radio: https://4.bp.blogspot.com/-3w3Tqe5qbyI/TysM-HfRNuI/AAAAAAAAAGQ/KM1rUHJqD6w/s1600/Tin-Cans.jpg
three components:
one can to transmit (that is, send)
one can to receiver
and the string along which the sound waves are sent: we call this the communication medium
(note that this technology permits a connection, because the communication channel exists as long as the three components are intact, and it’s not limited to just sending a single message one time)
this technology has a limited range, however, and it’s not particularly flexible: you can only talk to the one person who has the other can stuck up to their ear
HOWEVER
it demonstrates all three components of the physical layer: a transmitter, a receiver, and a communication medium
we will shortly see these exact same roles filled by different technologies in different contexts
we could examine many other ancient communication technologies and identify the transmitter, the receiver, and the communication medium, but we’ll move next to the telephone (not the cell phone, mind you: we’re still old school for the time being)
POTS (plain old telephone service): https://www.lunarmobiscuit.com/wp-content/uploads/2014/08/3045244218_b335c432fd_b.jpg
we’ve got a transmitter (the mouthpiece), the receiver (the handset on the left), and presumably there’s a wire that goes out the back of this thing to… somewhere
this setup is still pretty limiting in an important way: for two phones to talk to each other, there must already exist a copper wire between them
a couple potential solutions:
- everybody could connect to the same copper wire… except there can only be one conversation at once and it’s trivial for others to eavesdrop
- wires could be laid between every pair of phones that might want to talk to each other… except the cost and engineering effort would be astronomical and also much of the system would go unused at any given point in time
both of these are unacceptable at scale
which leads us to…
https://www.dinnerpartydownload.org/wp-content/uploads/2014/09/2664712.jpg

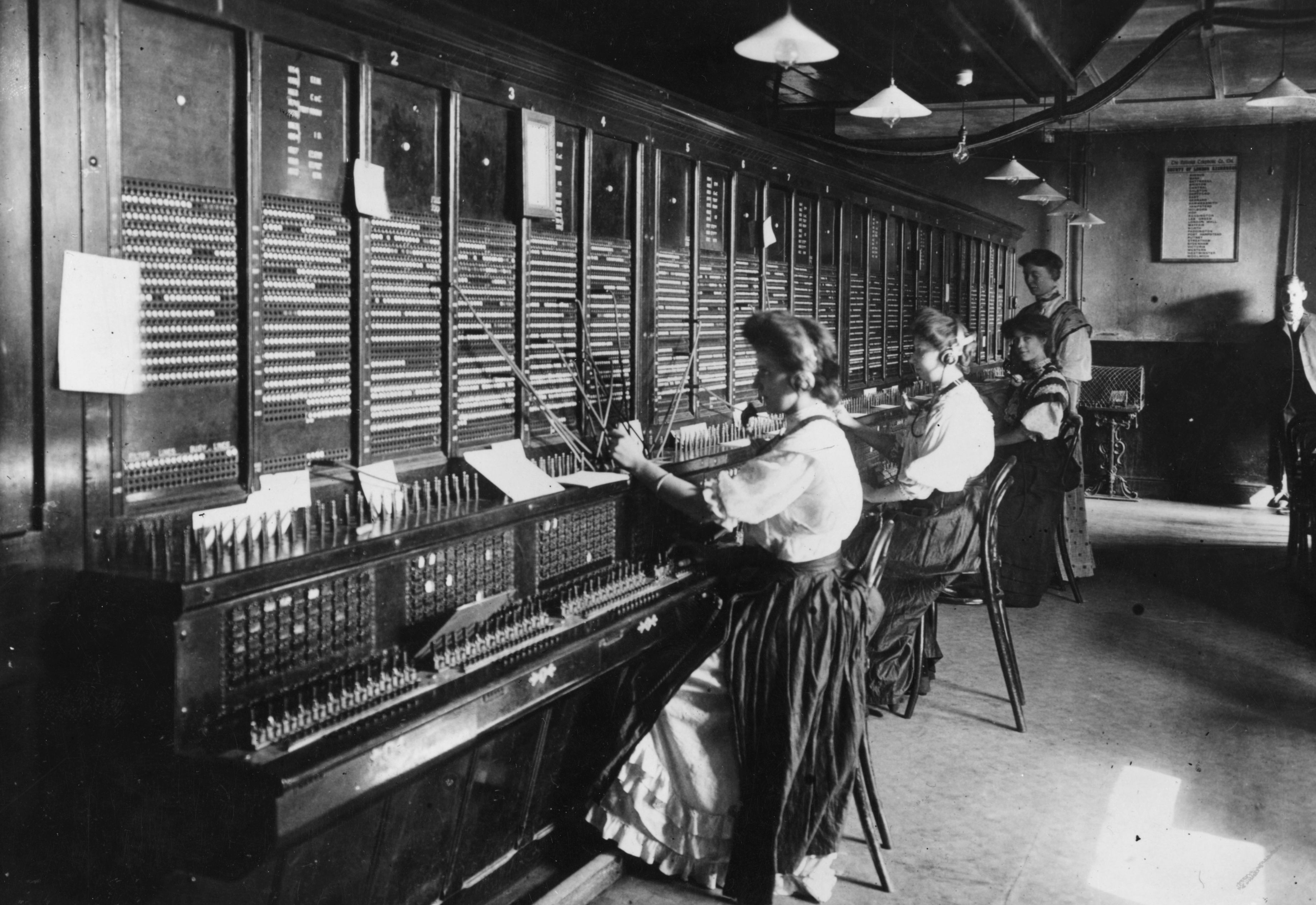

this is a telephone switchboard, with switchboard operators
each hole on the wall ("port") is directly connected to a different phone by a physical wire, usually copper
pick up your phone, a light goes on at the switchboard, the switchboard operator plugs in the wire from their headset to your port, and asks who you want to call
you tell them the name of the phone you want to talk to, they plug into that phone’s port, the phone rings, the person picks up, the switchboard operator tells them they have an incoming call, then the operator takes a separate cable and connects together the caller’s port with the callee’s port
and now electrons can flow from your phone, through the wire to the switchboard, over the cable between your port and your friend’s port, and through the copper wire to your friend’s phone
that copper wire is the medium
the transmitter is the physical phone that translates the sound of your voice into electrons
the receiver is the physical phone on the other end that translates the electrons back into the sound of your voice
note also that there was a protocol here: the caller, the switchboard operator, and the callee follow a distinct sequence of steps to make the call happen
less-visible aspects of the protocol are things like how the sound is translated into an electrical signal and back again
side note: deviations from the protocol can cause confusion
in this case, where the operator is a human, that confusion can often be resolved somewhat directly
but as these systems become computer-operated, deviating from protocols can potentially become much more difficult to recover from
one of those payoffs is that we can use the same infrastructure to call multiple people: we just need the operator to connect our phone’s port to a different callee’s port
not only that, but it supports multiple calls simultaneously
Port 1 and Port 12 could be talking to each other while Ports 37 and 92 are having their own conversation
extrapolate to long-distance with multiple switchboards/operators
rotary telephone: https://nbailey.ca/images/nt500.jpg
the advance here is that the job of the switchboard operator has been automated: dialing a particular number causes a particular sound ("tone") to be sent over the wire, which the machine at the switchboard can interpret and cause the correct connection to be made
the connection is no longer made by physically moving a cable, but we’ll get there
homes would have copper wires from the phone company office directly into the building, emerging at ports on the wall that look very similar to what you would probably identify as a network jack
Category 3 (Cat3) cable: https://www.3starinc.com/temp/images/CAT3_2PR_GY_800x600_.png
one interesting aspect of the preceding description of the phone network is that, when a call is in progress, there is an unbroken electrical circuit between the two phones
a connection!
what’s also perhaps interesting is that this is not the way modern phone or data networks work: it’s too rigid and inefficient
we’ll return to this idea a few times over the semester
note a meaningful difference between the tin-can example and the phone example:
two people can construct a tin-can communication network pretty much anywhere, just by dragging the string to the desired place
but the phone network works because a lot of time and money has been spent building the infrastructure
this has payoffs, in terms of supporting way more communication endpoints, in many cases simultaneously, but to participate, you’ve got to be where they’ve chosen to build
all of the preceding has also focused on more or less analog data: transmitting sounds
the medium is also analog: string, copper wire
but computers work with digital data: zeroes and ones
(even when we use computers to transmit, eg, sound, that sound is first translated into zeroes and ones; why though? because computers might want to send all sorts of data, and binary is the most fundamental—and therefore multipurpose—foundation for that)
in the context of computers, then, the physical layer transmitter is also responsible for translating from zeroes and ones to whatever analog format the medium supports
so the transmitter: the kernel gives it digital (binary) data, which the transmitter translates to an analog signal and sends along the medium
and the receiver: gets the analog signal from the medium, translates it to digital (binary) data, and hands it to the kernel
the receiver and the transmitter are physically connected to the computer
and the medium is connected between the receiver and transmitter
there are several different media in use today for this purpose
the biggies are copper wire (most of what you think of when you hear "Ethernet"), fiber (glass filament), and The Air (wireless: Wifi, Bluetooth, cell phones, etc)
these all have different requirements for transmitters and receivers:
copper needs to send and receive electrons over the wire
fiber needs to send and receive photons over the glass filament
wireless needs to send and receive radio signals over the ether
the component that translates between digital (zeroes and ones) and analog (electrons, photons, or radio waves on the medium) is usually called a PHY, short for "physical" (abbreviation, not acronym)
it usually exists as a dedicated chip inside a computer
I have also known the term "PHY" to refer to the physical connector into which the wire/cable (medium) is plugged
so if you encounter this term in the wild, be sure to be clear how the speaker is using it
as we will see in the coming weeks, the things we think of as computers (eg, laptops, desktops, and now phones and tablets) definitely have PHYs
but so do lots of other devices, and also we will discover new devices whose purpose is to make networks operate—all of these have PHYs as well
a common term for "a generic device connected to a network" is host
I’m introducing this because a) you’ll see it a lot in documents we read and b) it will hopefully help you to start thinking of "network devices" as more than just machines that humans use directly
choice of physical layer affects the speed of data
there are actually two facets to speed in this context
latency refers to the time it takes for a single unit of data to get from sender to receiver
bandwidth refers to the amount of data that can be sent during a unit of time
these may sound like the same thing, but they are not
if Host A sends a single bit of data to Host B, and it arrives 50 milliseconds after sending, that is latency
Host A might not, however, be able to send a second bit to Host B for a while
due to characteristics of the physical layer, Host A might have to wait until sending the next bit to Host B
so perhaps Host A sends the second bit 1 second later, and that second bit takes 50 milliseconds to arrive at Host B
Host A has now sent 2 bits over the course of 1.1 seconds, because the time elapsed from when Host A began sending the first bit to when Host B received the second bit was 1.1 seconds
the latency is 50 milliseconds
the bandwidth is 2/1.1 bits per second
not to abuse the "network as a series of pipes" analogy, but you can think of latency as the time it takes for a single water molecule to travel from point A to point B
and you can think of bandwidth as how many water molecules flow through the pipe per second
another characteristic of the physical layer is whether the same medium can be used to send in both directions
we use the term simplex to refer to a medium that permits transmission in one direction only
half-duplex describes a medium that can be used to send either direction, but only one direction at any one time—it does not support both sides transmitted simultaneously
a full-duplex medium does, however: data can be transmitted both directions at the same time
one way this might be achieved is to put two simplex media in the same wire: one going one direction, and the other going the other direction
this is more accurately termed dual-simplex, though the distinction disappears at the higher levels of abstraction
